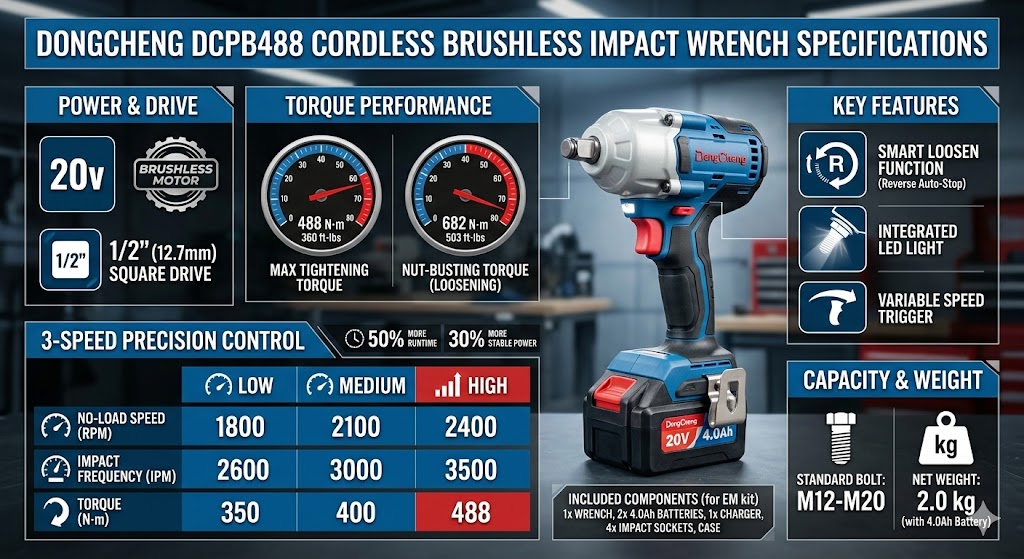

Specifications

• Model: DCPB488
• Brand: DongCheng
• Tool Type: Cordless Brushless Impact Wrench
• Battery: 20V MAX / 4.0Ah (varies by type — DM: 1×4.0Ah | EK: 2×4.0Ah | FK: 2×5.0Ah | Z: Solo)
• Motor Type: All-Copper Brushless
• Max. Output Power: Equivalent to 450W AC
• Square Drive Size: 12.7 mm (1/2″)
• Standard Bolt Size: M12 – M20 mm
• Max. Torque: 488 N.m
• Nut-Busting Torque: 682 N.m
• Torque Settings: Low — 350 N.m | Middle — 400 N.m | High — 488 N.m
• No-Load Speed: Low — 1800 r/min | Middle — 2100 r/min | High — 2400 r/min
• Impact Frequency: Low — 2600 /min | Middle — 3000 /min | High — 3500 /min
• Speed Modes: 3-Speed
• Net Weight: 2.0 kg (with battery) | 1.4 kg (Solo/bare tool)
• Forward / Reverse: Yes (one-key switchover)
• LED Work Light: Yes
• Packing: Plastic Carry Case (Type DM) / Colour Box (Type Z)

Description

The DongCheng DCPB488 is a 20V MAX all-copper brushless cordless impact wrench built for professionals who require high-torque fastening and loosening performance across automotive, structural steel, mechanical assembly, and heavy civil construction applications. Powered by DongCheng’s brushless motor platform, the DCPB488 delivers a maximum torque output of 488 N.m — equivalent to 450W AC power — with a nut-busting torque of 682 N.m for breaking loose seized and overtightened fasteners. The all-copper brushless motor runs cooler and more efficiently than brushed alternatives, extending both tool life and battery runtime — a significant advantage in Indian job-site conditions where tools operate through long shifts in heat and dust.

The 3-speed gearbox with three separate torque settings — Low (350 N.m), Middle (400 N.m), and High (488 N.m) — gives the operator precise control over fastening force across different bolt sizes and material combinations. Operating at no-load speeds between 1800 and 2400 RPM with impact frequencies reaching 3500 impacts per minute, the DCPB488 handles M12–M20 standard bolt sizes with speed and accuracy. The smart loosening function is a distinguishing feature, preventing workpieces from falling off during reverse operation — particularly useful in elevated work, underbody vehicle work, and structural bolt removal where dropped fasteners pose a safety and productivity risk.

The compact body design and ergonomic rubber-coated grip keep the tool well-balanced and comfortable during extended use, reducing operator fatigue in repetitive tightening and loosening applications. The built-in LED work light illuminates dark recesses, underbody spaces, and poorly lit panel areas where precise fastener engagement is required. The integrated large-diameter thermovent supports continuous operation under load without heat-related shutdowns, making it suitable for sustained production use. The DCPB488 runs on DongCheng’s 20V MAX battery platform, ensuring cross-compatibility with other tools in the same cordless system.

Features

• All-copper brushless motor delivers 488 N.m maximum torque — equivalent to 450W AC output — with extended motor and battery life
• 682 N.m nut-busting torque for effective removal of seized, rusted, and overtightened fasteners on M12–M20 bolts
• 3-speed gearbox with individual torque settings (350 / 400 / 488 N.m) for precise control across different fastening requirements
• No-load speeds of 1800 / 2100 / 2400 RPM with impact frequencies up to 3500 /min for fast, high-cycle fastening operations
• Smart loosening function prevents workpieces from falling during reverse operation — critical for elevated and underbody applications
• 1/2″ (12.7mm) square drive accommodates the full range of standard impact sockets for M12–M20 bolt applications
• Forward and reverse one-key switchover for seamless transition between tightening and extraction tasks
• Built-in LED work light illuminates dark, recessed, and confined work areas without requiring a secondary light source
• Large-diameter thermovent housing supports continuous operation under sustained load without thermal shutdown
• Ergonomic rubber-coated grip provides anti-vibration damping and secure handling in oily, dusty, and wet conditions
• Compatible with DongCheng 20V MAX battery platform — cross-compatible across the full 20V cordless tool range
• Compact body construction improves access in confined spaces and reduces overall tool fatigue during extended operation

Accessories (Box Contents)

(Varies by Type — confirm variant when ordering)

• 1× DongCheng DCPB488 Cordless Brushless Impact Wrench
• Type DM: 1× 20V 4.0Ah Battery + 1× 2A Charger + Plastic Carry Case
• Type EK: 2× 20V 4.0Ah Batteries + 1× 4A Fast Charger + Plastic Carry Case
• Type FK: 2× 20V 5.0Ah Batteries + 1× 4A Fast Charger + Plastic Carry Case
• Type Z (Solo): Bare Tool Only — Colour Box Packing
